ECOPANEL WLC is the premium type of CORE concealed-fix wall panels. The standard outer face is of four different shapes “microline”, “polyline”, “waveline”, flat, depending of the steel sheet thickness and the inner face is slightly shaped “standard” or flat. The standard steel sheet thickness of the external face is 0.45mm “microline” shaped and for the internal face is 0.40mm “standard” shaped. The standard top coating on both faces is Polyester 25μm in RAL scale colours. Under request are available variable steel sheet thickness, coatings and colours, according to the specific demands of the building.




Special features




  1. Modern external aesthetic facade.
  2. Secured concealed fix joint by a normal fastener, which holds both external - internal sheets.
  3. Factory - fitted foam tape in the female side for a greater jointing sealability.
  4. Aluminium foil strip, less gas escapes from the polyurethane cells thus ensuring good conductivity for longer.
  5. Polyurethane foam core CFC Free & HCFC Free. Harmless to the environment and safe for the ozone layer.

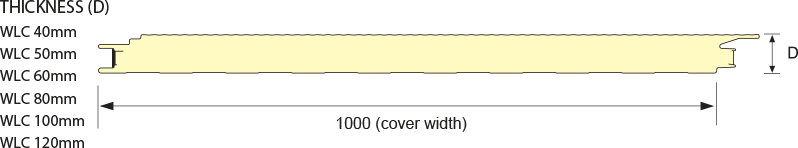

Panel Type Outer sheet thickness
(mm)
Inner sheet thickness
(mm)
D
(mm)
Weight
(kg/m 2)
Heat transmission
coefficient
U (W/m 2K)
Max length
(m)
WLC 40 0.45 0.40 40 8.67 0.62 16.0 16.0
WLC 50 0.45 0.40 50 9.05 0.48 16.0
WLC 60 0.45 0.40 60 9.43 0.39 16.0
WLC 80 0.45 0.40 80 10.19 0.28 16.0
WLC 100 0.45 0.40 100 10.95 0.2 16.0
WLC 120 0.45 0.40 120 11.71 0.18 16.0

Thermal conductivity "λ" = 0,02 W/m*K

EASYPANEL WLC is the economical type of CORE wall concealed-fix panels. The outer face is “microline” shaped and the inner face is “standard” shaped.


Construction details





  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 9. Thermal insulation
  • 10. Self-Adhesive sealing strip
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 9. Thermal insulation
  • 10. Self-Adhesive sealing strip
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 26. Special aluminium profile
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 9. Thermal insulation
  • 21. Metal frame
  • 26. Special aluminium profile
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 9. Thermal insulation
  • 13. Supporting flashing
  • 21. Metal frame
  • 26. Special aluminium profile
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 20. «C» Rail
  • 2. ECOPANEL WLC
  • 10. Self-Adhesive sealing strip
  • 13. Supporting flashing
  • 15. Supporting angle
  • 21. Metal frame
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 30. Window
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 13. Supporting flashing
  • 20. «C» Rail
  • 30. Window
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 31. Door
  • 2. ECOPANEL WLC
  • 5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
  • 12. Flashing
  • 13. Supporting flashing
  • 20. «C» Rail
  • 31. Door
  • 1. ECOPANEL RL
  • 2. ECOPANEL WLC
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
  • 6. Stitching screw or rivet
  • 9. Thermal insulation
  • 11. Butyl rubber sealant
  • 12. Flashing
  • 16. «Z» Profile
  • 19. «Z» Purlin
  • 20. «C» Rail
