The translucent sheets and panels are made of synthetic material.

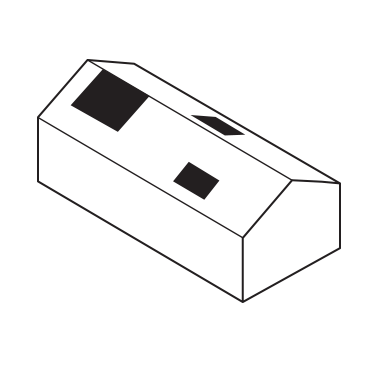

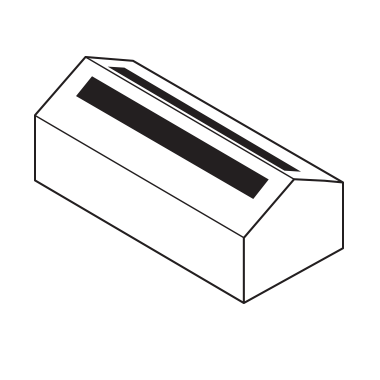

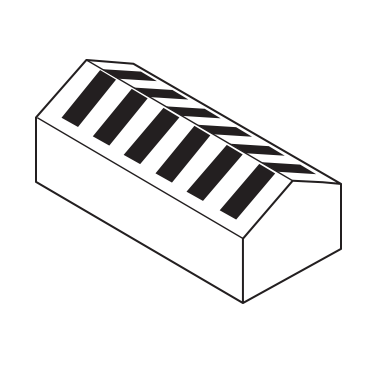

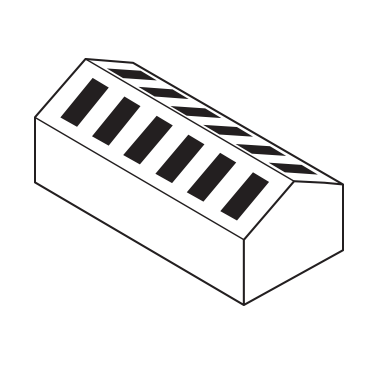

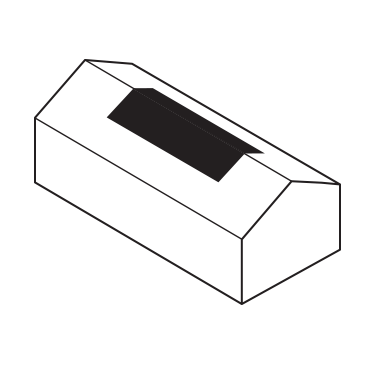

They can be placed on the roof of the building in different locations and combined in different ways with the ECOPANEL RL - EASYPANEL RL - AGROPANEL RL Ceiling Panels.




Fig. 1


Fig. 2


Fig. 3


Fig. 4


Fig. 5


The DRL Rooflight panel of ELASTRON SA is manufactured by two formed glass reinforced polyester (GRP) sheets, bonded together through special polyethylene profile filler. These profile fillers are interposed longitudinal at the side edges of the panel and across, on the support points at the frame of the building (as it is shown in the drawings.) The external trapezoidal sheet has exactly the same shape as the external steel sheet of ECOPANEL RL, while the internal sheet is slightly formed. Their join with the ECOPANEL RL is fast and easy. The DRL Rooflight panel is manufactured in various dimensions and width 30mm - 40mm - 50mm - 60mm - 80mm - 100mm.





ECOPANEL DRL


DRL30 W = 30mm
DRL40 W = 40mm
DRL50 W = 50mm
DRL60 W = 60mm
DRL80 W = 80mm
DRL100 W = 100mm


Panel Type Outer Sheet Thickness (mm) Inner Sheet Thickness (mm) D (mm) Long-term Thermal Conductivity Thermal Transmittance Weight Standard Production Length
DRL 30 1,20 1,30 30 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm
DRL 40 1,20 1,30 40 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm
DRL 50 1,20 1,30 50 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm
DRL 60 1,20 1,30 60 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm
DRL 80 1,20 1,30 80 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm
DRL 100 1,20 1,30 100 λ=0,16 W/m°C κ=2,90 W/m²°C 3,95 kg/m² From 4.500mm to 9.500mm by step of 500mm

SECTION DETAIL OF ROOFLIGHT PANEL DRL WITH ECOPANEL RL



  • 1. ECOPANEL RL WIDTH= 30 mm -100 mm
  • 4. SELF-DRILLING FIXING SCREW 5,5-6,3mm x L (METAL WASHER - EPDM)
  • 8. PROFILED FILLER STRIPS
  • 19. "Ζ" PURLIN
  • 22. ALUMUNIUM CAP
  • 23. ECOPANEL DRL

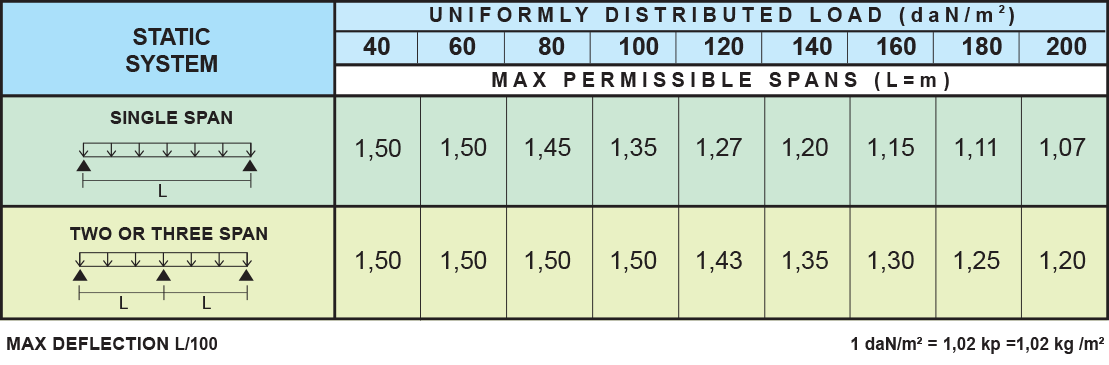

LOAD TABLE




END LAP JOIN ROOFLIGHT PANEL DRL WITH ECOPANEL RL

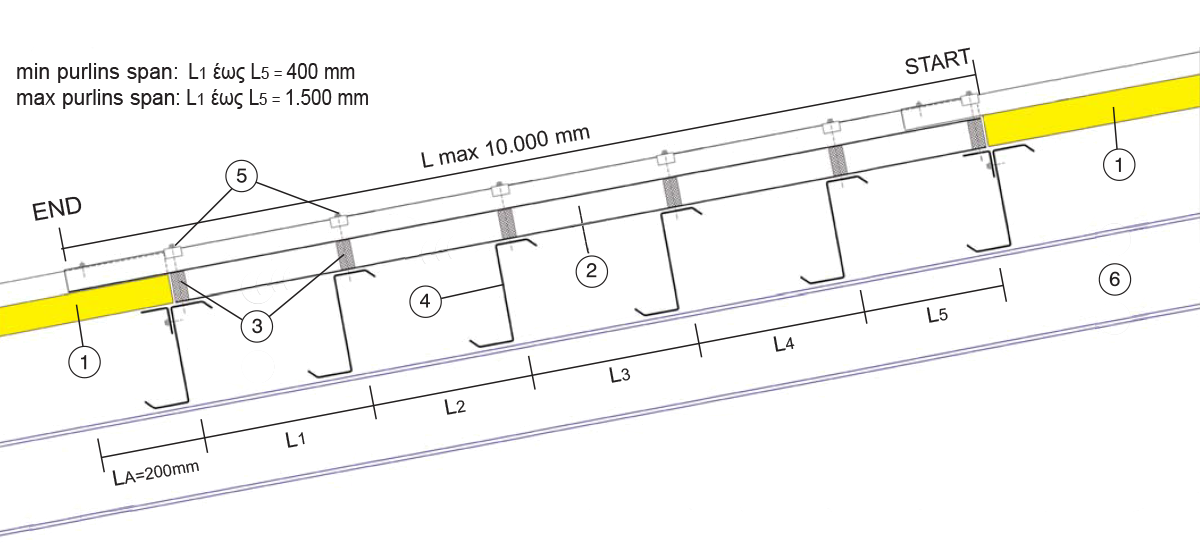

LONGITUDINAL (END LAP) SECTION





  • 1. ECOPANEL RL
  • 2. Rooflight panel DRL
  • 3. 3. Profile filler
  • 4. Z purlin
  • 5. Fastener points
  • 6. Steel frame

The Double Roof-light DL consists of two shaped synthetic sheets, trapezoidal cross sections of different height, which are placed on the construction site, one above the other.

The outer sheet is acrylic, reinforced with glass polyester, the same as the ECOPANEL DRL Roof-light Panels.

The inner sheet is glass reinforced polyester, trapezoidal cross-section.

They are suitable for the construction of Roof-light elements for assembly with ECOPANEL RL thickness of 40mm and 50mm.

The single length of the outer sheets varies from 4.500mm - 9.500mm in steps of 500mm. The length of the inner sheets is 6.000 mm or 7.500 mm long



SECTION DETAIL OF DOUBLE ROOF-LIGHT SHEET DL WITH ECOPANEL RL





  • 1. ECOPANEL RL 40 mm OR 50 mm THICK
  • 4. SELF-DRILLING FIXING SCREW 5,5-6,3mm x L (METAL WASHER with EPDM)
  • 19. "Ζ" PURLIN
  • 22. ALUMUNIUM CAP
  • 23. ACRYLIT 40.333 (outer sheet)
  • 24. POLYLIT 89-333 / 79-333 (inner sheet)

It is the most economical solution for Roof-light elements. This sheet is the outer sheet of the ECOPANEL DRL Roof-light described above.

It is placed on the construction site. For its assembly with ECOPANEL RL - EASYPANEL RL - AGROPANEL RL, it is necessary to insert between the purlins and the panels, a spacer of the same height as the basic thickness of the panels.

This spacer may be either a hollow or galvanized "Z" shaped profile, or transverse panel strips.

The single length of the sheet ranges from 4.500mm - 9.500mm in steps of 500mm.
