ECOPANEL WL/FW is the premium type of CORE visible-fix wall panels.

The standard both faces are slightly shaped “standard” type or flat. The standard steel sheet thickness of both faces is 0.40mm - 0.45mm. The standard top coating on both faces is Polyester 25μm in RAL scale colours. Under request are available variable steel sheet thickness, coatings and colours, according to the specific demands of the building.




Special features




  1. Suitable shaping of the external sheet to resist external influences such as weather, temperature fluctuations and mechanical stress.
  2. Factory-fitted foam tape in the female side of overlap for a greater jointing sealability.
  3. Aluminium foil strip, less gas escapes from the polyurethane cells thus ensuring good conductivity for longer.
  4. Polyurethane foam core CFC Free & HCFC Free. Harmless to the environment and safe for the ozone layer.

Panel Type Outer sheet thickness
(mm)
Inner sheet thickness
(mm)
D
(mm)
Weight
(kg/m 2)
Heat transmission
coefficient
U (W/m 2K)
Max length
(m)
WL/FW 40 0.45 0.45 40 8.61 0.51 16.0 16.0
WL/FW 50 0.45 0.45 50 8.99 0.42 16.0
WL/FW 60 0.45 0.45 60 9.37 0.35 16.0

Thermal conductivity "λ" = 0,02 W/m*K

EASYPANEL WL/FW is the economical type of CORE wall concealed-fix panels. Both faces are slightly shaped “standard” type.


Construction details

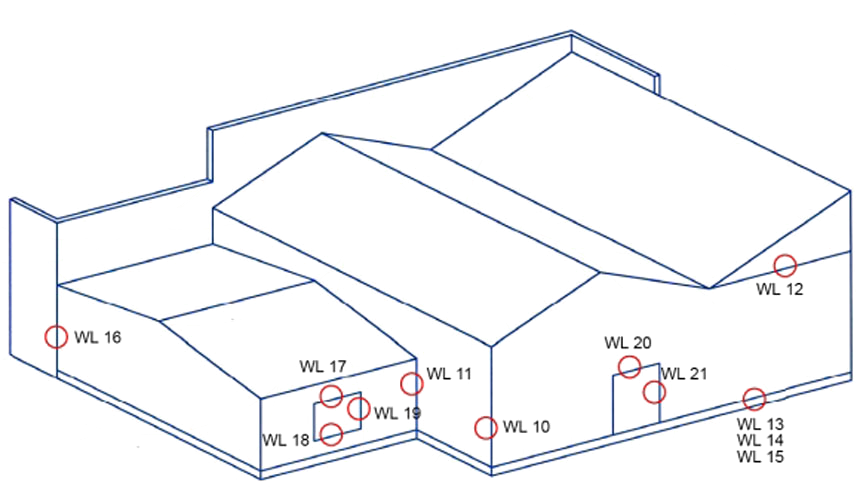

ecopanelacc-wl-1 ecopanelacc-wl-2 ecopanelacc-wl-3 ecopanelacc-wl-4 ecopanelacc-wl-5 ecopanelacc-wl-6 ecopanelacc-wl-7 ecopanelacc-wl-8 ecopanelacc-wl-9 ecopanelacc-wl-10



  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 9. Thermal insulation
  • 12. Flashing
  • 15. Supporting angle
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 9. Thermal insulation
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 11. Butyl rubber sealant
  • 12. Flashing
  • 13. Supporting flashing
  • 15. Supporting angle
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 10. Self-Adhesive sealing strip
  • 11. Butyl rubber sealant
  • 12. Flashing
  • 13. Supporting flashing
  • 15. Supporting angle
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 10. Self-Adhesive sealing strip
  • 11. Butyl rubber sealant
  • 12. Flashing
  • 13. Supporting flashing
  • 15. Supporting angle
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
  • 6. Stitching screw or rivet
  • 10. Self-Adhesive sealing strip
  • 11. Butyl rubber sealant
  • 12. Flashing
  • 13. Supporting flashing
  • 15. Supporting angle
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 9. Thermal insulation
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 30. Window
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 30. Window
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 31. Door
  • 2. ECOPANEL WL
  • 4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
  • 6. Stitching screw or rivet
  • 12. Flashing
  • 20. «C» Rail
  • 21. Metal frame
  • 31. Door
