JOISTS
IPN

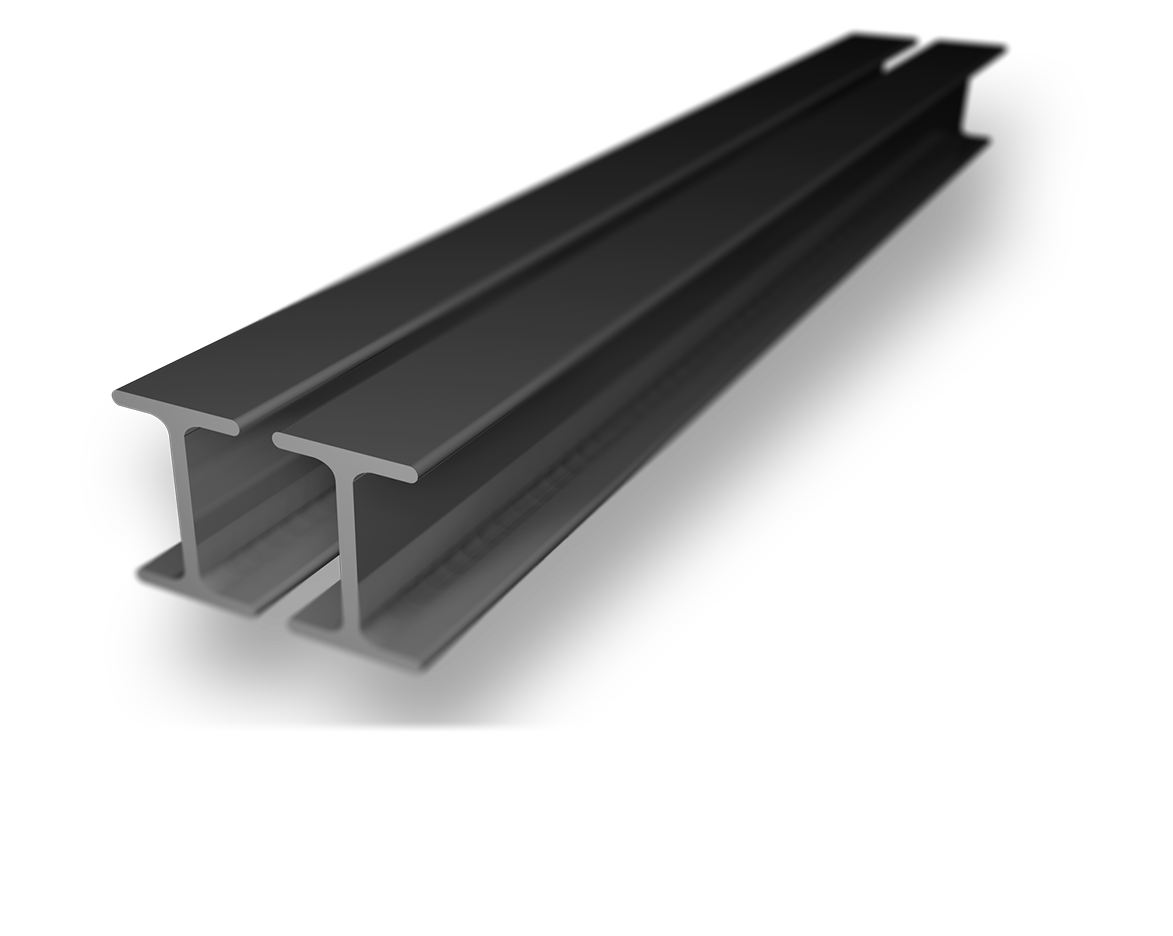

Joists
IPN
Long products
IPN
IPN

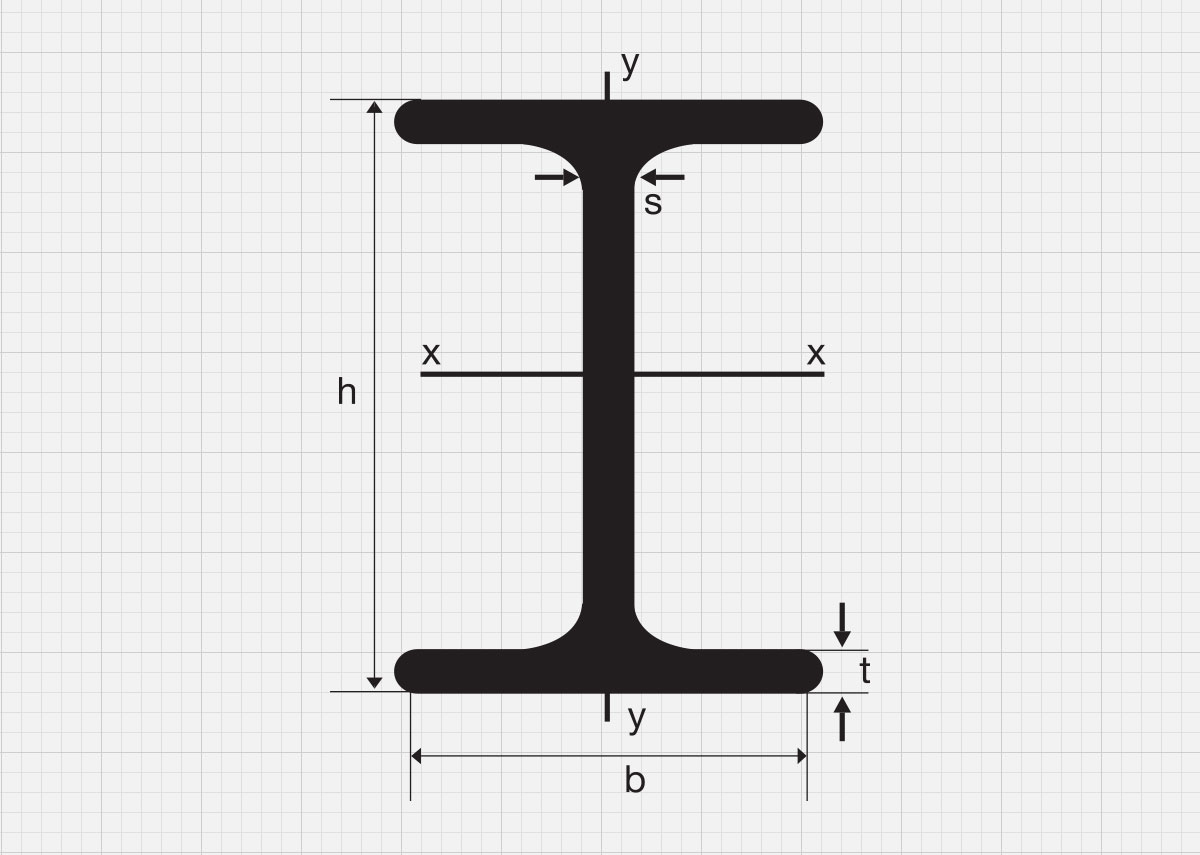

Dimensions
h (mm)
b (mm)
s (mm)
t (mm)
80
80
42
3.9
5.9
100
100
50
4.5
6.8
120
120
60
5.1
7.7
140
140
68
5.7
8.6
160
160
74
6.3
9.5
180
180
84
6.9
10.4
200
200
90
7.5
11.3
220
220
98
8.1
12.2
240
240
105
8.7
13.1
260
260
113
9.4
14.1
280
280
119
10.1
15.2
300
300
125
10.8
16.2
320
320
131
11.5
17.3
340
340
137
12.2
18.3
360
360
143
13.0
19.5
380
380
149
13.7
20.5
400
400
155
14.4
21.6
450
450
170
16.2
24.3
500
500
185
18.0
27.0
550
550
200
19.0
30.0
600
600
215
21.6
32.4
IPN
Cross section
Weight
Resisting moment
F (cm²)
G (kg/m)
W
x (cm³)
W
y (cm³)
80
7.57
5.94
19.5
3.00
100
10.60
8.34
34.2
4.88
120
14.20
11.10
54.7
7.41
140
18.20
14.30
81.9
10.70
160
22.80
17.90
117.0
14.80
180
27.90
21.90
161.0
19.80
200
33.40
26.20
214.0
26.00
220
39.50
31.10
278.0
33.10
240
46.10
36.20
354.0
41.70
260
53.30
41.90
442.0
51.00
280
61.00
47.90
542.0
61.20
300
69.00
54.20
653.0
72.20
320
77.70
61.00
782.0
84.70
340
86.70
68.00
923.0
98.40
360
97.00
76.10
1090.0
114.00
380
107.00
84.00
1260.0
131.00
400
118.00
92.40
1460.0
149.00
450
147.00
115.00
2040.0
203.00
500
179.00
141.00
2750.0
268.00
550
212.00
166.00
3610.0
349.0
600
254.00
199.00
4630.0
434.0
